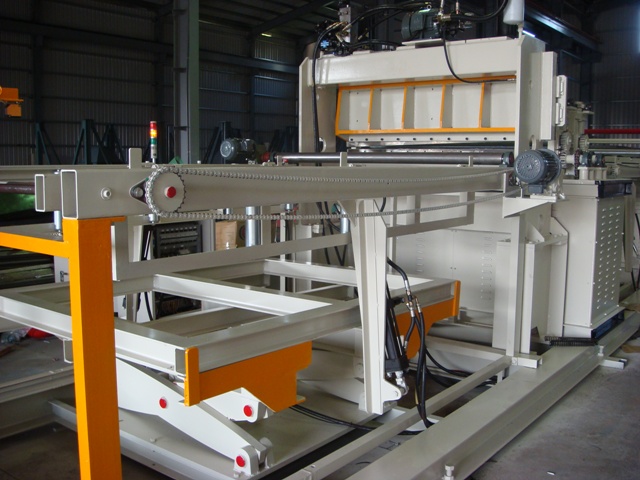

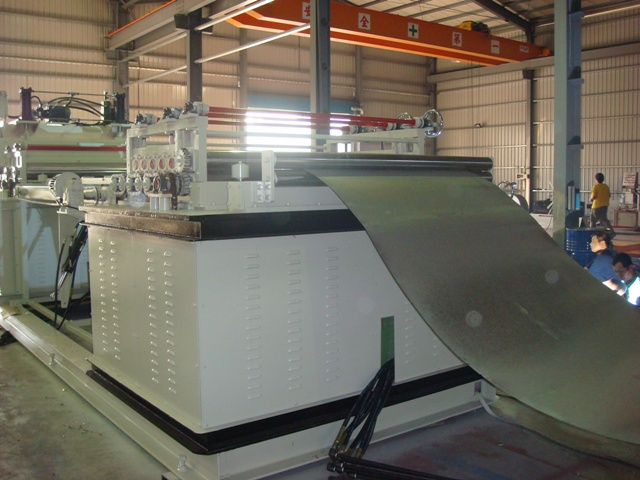

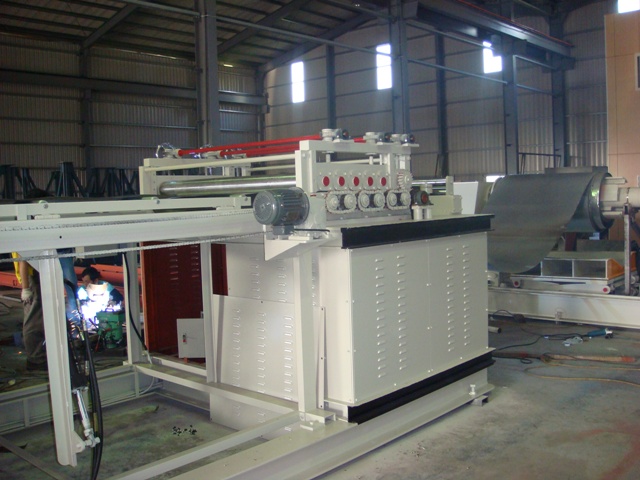

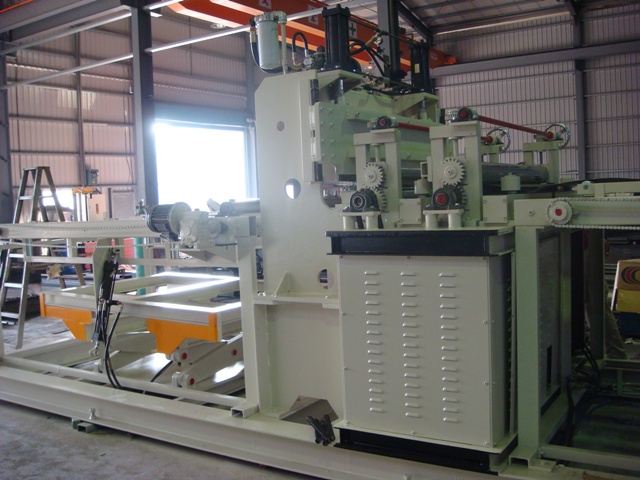

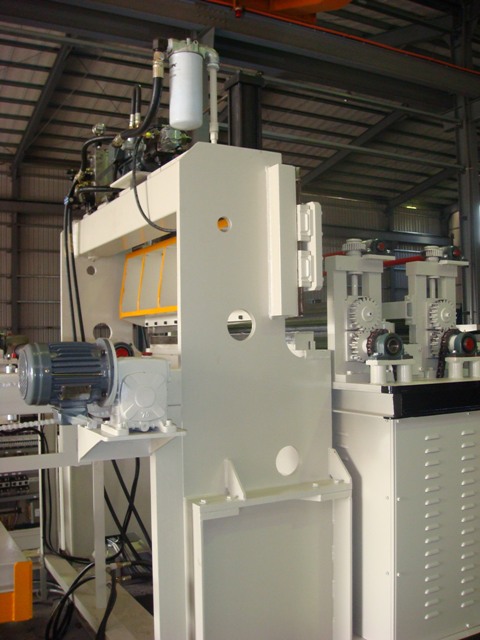

鋼捲裁切機
PRODUCTS
1) Main Specifications:
ENTRY COIL
Entry coils to be cut : HRC/CRC/GI/EI/Pre-painted carbon Steel - Coil.
: Tensile Strength = 22 ∼ 53 Kg/mm?.
Thickness of entry coils : 0.20 mm ∼ 2.00 mm
Width of entry coils (Max.) : 762 mm ∼ 1570 mm
I.D. of entry coils : ?508 mm (nominal)/ ?610 mm
O.D. of entry coils : ?850 mm ∼ ?1800 mm
Weight of entry coils : 15,000 Kg. (max.)
FINISHED SHEET
Range of sheet to cut (Max.) : 100 mm ∼ 3000 mm.
Tolerance of finished sheet : ±0.30 mm per Meter.
Diagonal tolerance of finished plate : ±0.50 mm.
LINE DATA
Line speed (Max.) : 50.0 Meter per Minute.
(30 pcs. per Min. with 1000 mm in length.)
Load of Uncoiler : 15,000 Kg.
Load of Auto-stacker : 3,000 Kg.
Number of operator : 2 person.
Required Electrical Source : AC380V; 50Hz.; 3 Ph.; (156.0 Kw).
